VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Columbus, OH | TruePane Windows & Doors

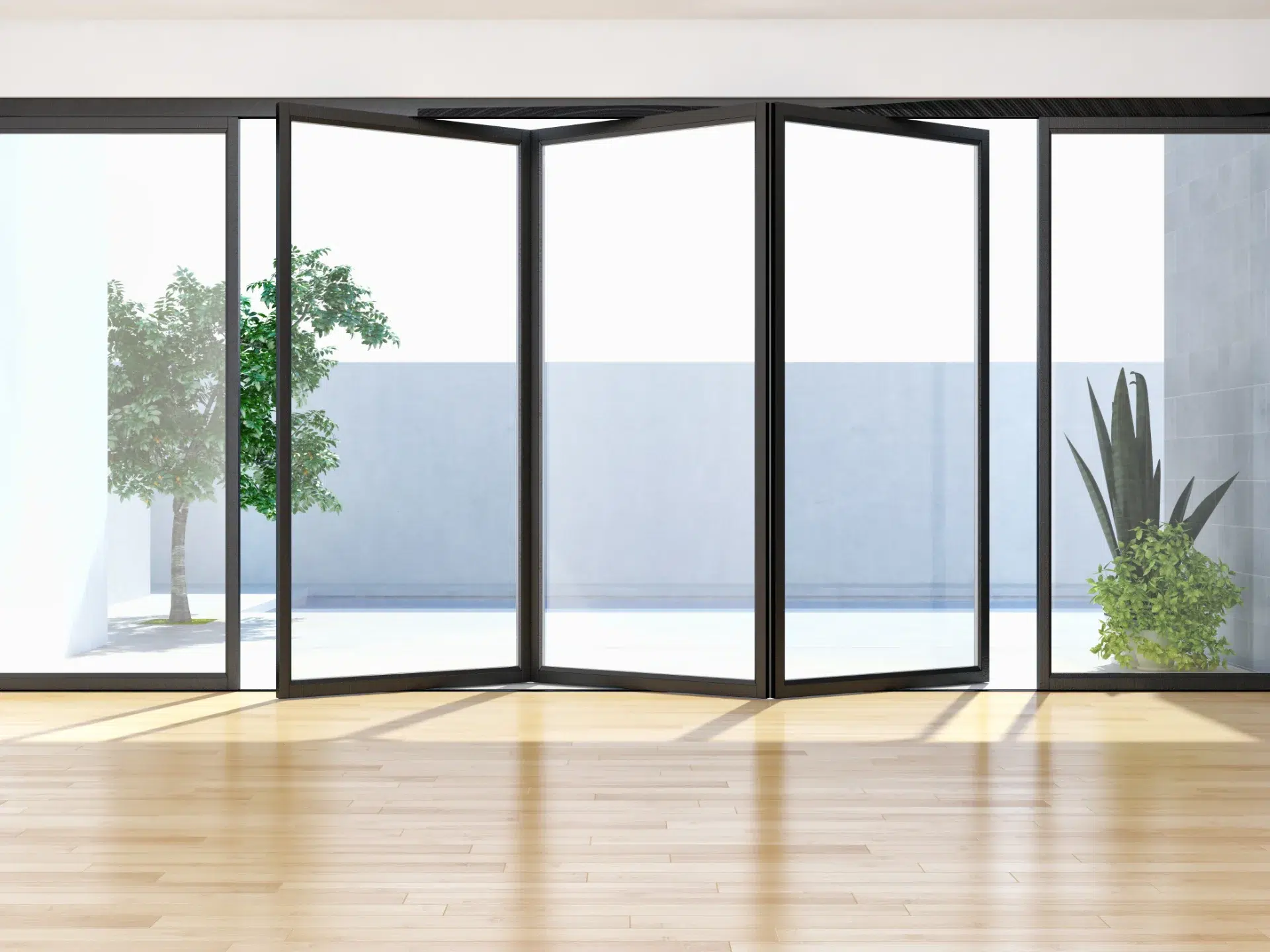

The VLX 100 Bifold / Folding Door is an accordion-style aluminum door system that opens an entire wall, usually 12 to 20 feet wide, to connect an interior living space with a patio, deck, or backyard. Homeowners across Columbus, OH choose it for kitchens, family rooms, and finished basements where a standard sliding door would leave half the opening blocked. TruePane Windows & Doors is an authorized ViewLux installation partner, which means we order directly, install to factory spec, and stand behind the full warranty. Call (888) 635-0804 for a free on-site measurement and line-item quote.

Call (888) 635-0804

Product Overview - VLX 100 Bifold / Folding Door

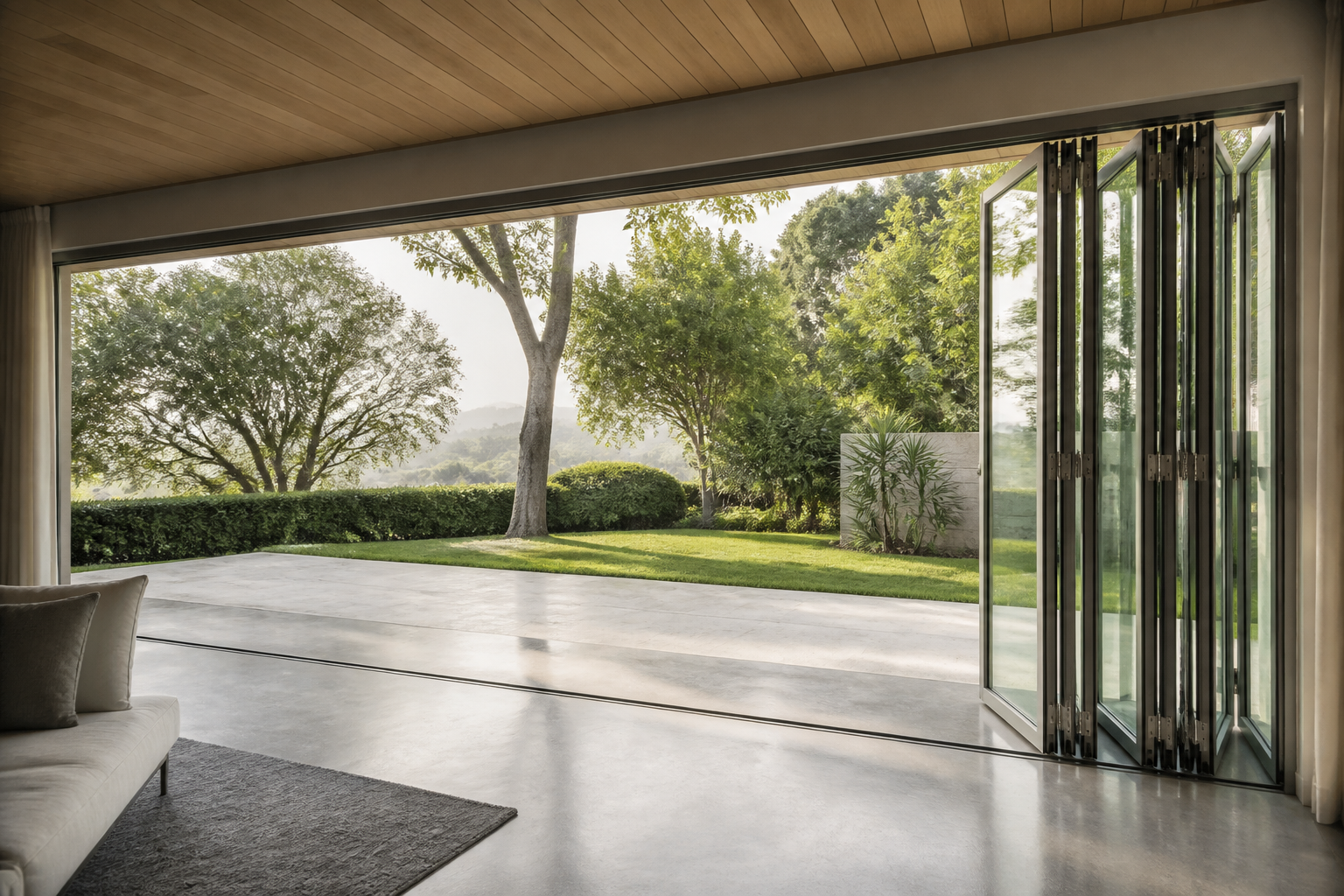

The VLX 100 is built around a simple idea: when the weather is good, the wall between your living room and your yard should disappear. Panels fold flat against one another and stack to the side, leaving an opening from finished floor to header, jamb to jamb. In Columbus, where late spring and early fall offer genuinely comfortable outdoor days, that full-width opening changes how a house gets used. It is the difference between walking through a sliding door and hosting a cookout where people move freely between the kitchen and the patio without bumping into a stationary glass panel.

Architecturally, this series fits modern farmhouses in New Albany, mid-century ranches in Worthington, and contemporary builds in German Village equally well. The aluminum frame is the reason. At 0.098 inches thick and with a 2.56-inch profile width, the panels stay slim and tall without flexing. Aluminum does not rot, warp, or swell the way wood does through Ohio’s freeze-thaw cycles, and it does not bow under wide spans the way vinyl can. Buyers who have had a wood patio door stick after a wet spring or a vinyl frame gap in a cold snap tend to appreciate what that means in practice. The engineering target is straightforward: a door that opens smoothly ten years after installation as the day it went in.

Technical Specifications

Exact numbers matter on a product like this, because a quarter-inch here or there changes the rough opening, the header load, and the final look. Here is the VLX 100 line spec we order from ViewLux:

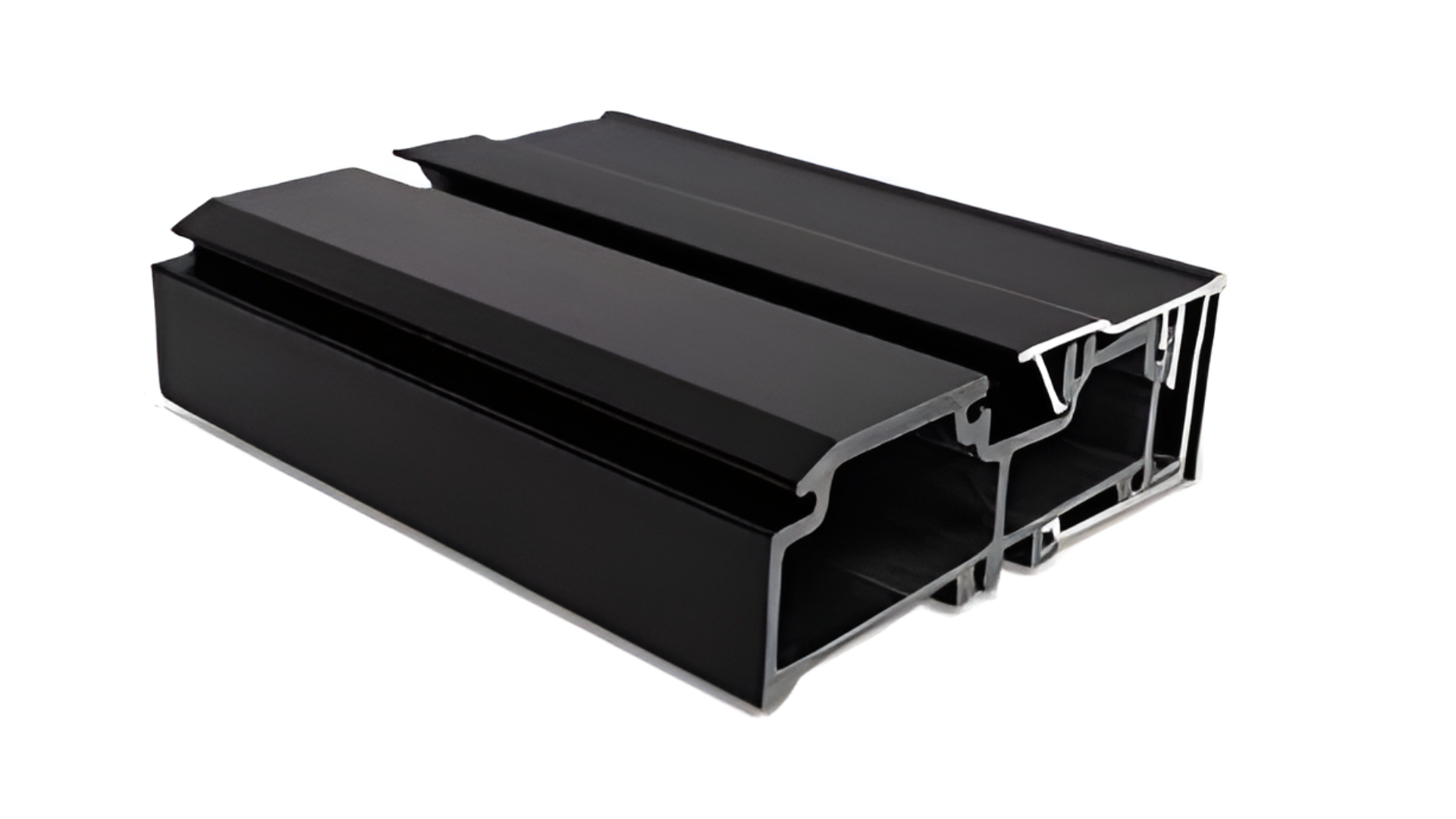

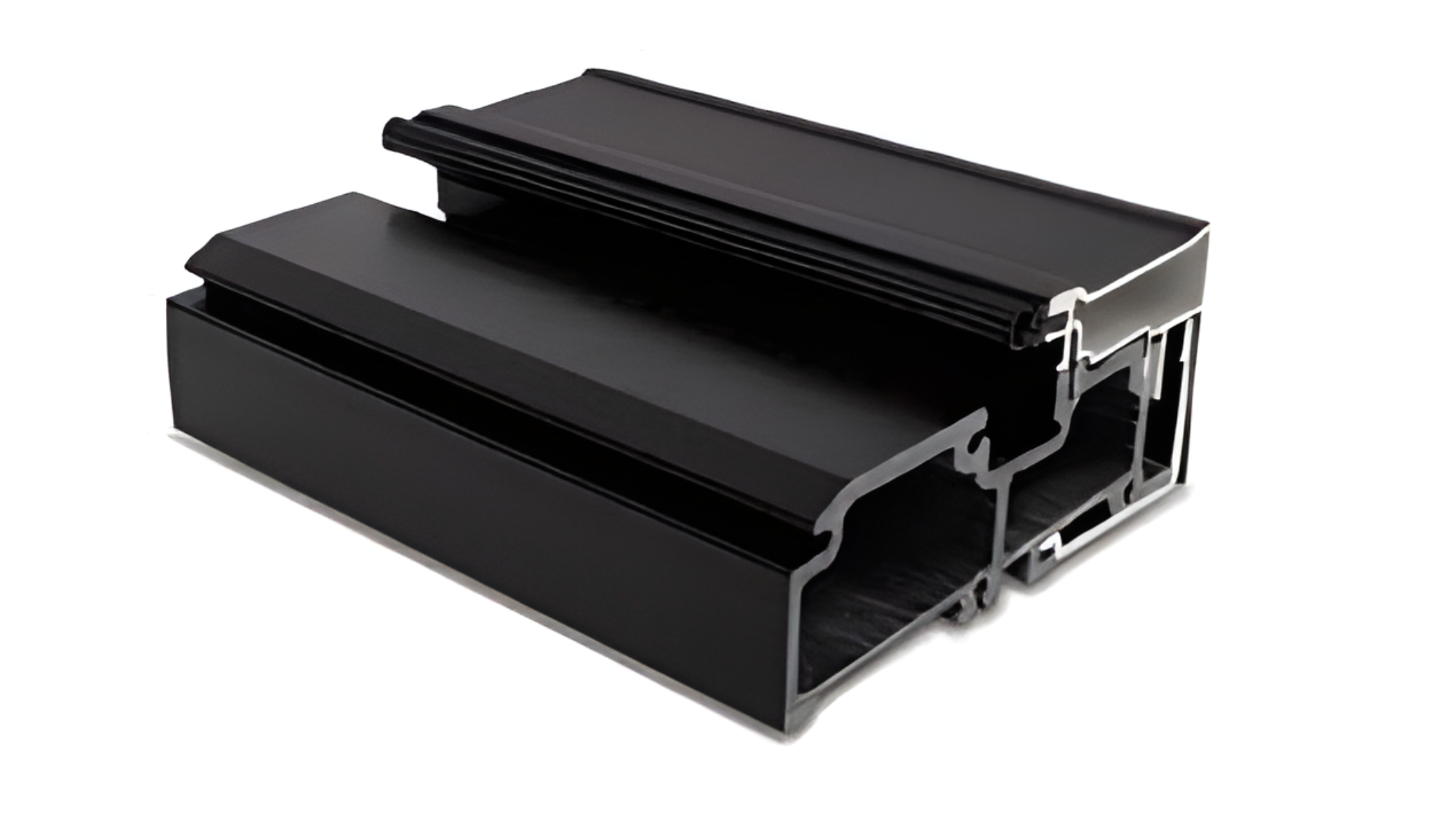

• Wall thickness: 0.098-inch extruded aluminum profile
• Profile width: 2.56 inches
• Maximum span: Up to 20 feet in a single opening
• Track configurations: 2-panel, 3-panel, 4-panel, 5-panel, and 6-panel
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or none

Panel count is a layout decision, not a style decision. A 4-panel configuration across a 16-foot opening means each panel is around 4 feet wide and stacks to one side or splits to both sides. A 6-panel configuration across the same 16 feet gives you narrower panels and a smaller stack, which suits tighter patios. We walk Columbus customers through these choices at the measurement appointment.

Performance Features

All-aluminum doors share the same challenge: metal conducts temperature. The VLX 100 addresses that with a thermal break built into the frame profile, separating the exterior aluminum from the interior aluminum. The result is an NFRC-rated energy profile that keeps conditioned air inside a Columbus home through January and July alike. Low-E glass is standard on orders we place for local installs, which further cuts solar heat gain on west-facing walls.

Acoustic Performance - The mass of 0.098-inch aluminum plus double-sealed glazing creates a meaningful barrier to outside noise. For homes near High Street traffic, along 315, or under flight paths near John Glenn, laminated glass steps the sound control up another level. We have installed VLX 100s in Clintonville homes where the owner said the dishwasher inside was louder than the street outside.

Airtightness & Weather Seal - Interlocking panel edges and a continuous bottom rail seal keep outside air where it belongs. On installation day, we run a perimeter air check before trim goes on. A door can only perform to its rating if the rough opening is sealed correctly, and that is where most cheap installs fail. Our crews follow the AAMA 2400/2410 installation standard on every job, no exceptions.

Waterproofing - Columbus gets a real mix: soaking spring rains, summer thunderstorms, and the occasional horizontal wind-driven rain. The VLX 100 has a sloped sill track that directs water outward, and we add AAMA 812 low-expansion foam sealant at every perimeter joint during install. That foam does not bow frames or ruin the level, and it stops air and water penetration at the wall-to-frame transition, the exact spot where leaks start.

Wind Resistance - The panel count and height determine wind load rating, and the VLX 100 is engineered for swings that match central Ohio’s climate data. On wide openings, we may recommend tempered or laminated glass to meet wind-load requirements for the specific wall exposure. This matters on open lots in Delaware County or backing up to a retention pond where wind has nothing to slow it down.

Security & Hardware - Each panel rides on a multi-wheel roller carriage that is adjustable, so if a panel ever settles, we retune the carriage rather than replacing hardware. Locking is integrated at the meeting stile, and the track is low-profile enough for a level interior-to-exterior floor transition. Laminated glass adds a security benefit beyond sound: it holds together under impact, which slows entry and meets codes for specific applications.

Color & Glass Options

Finish selection shapes the room more than any other choice. Premium Black is the most popular in Columbus right now, especially on newer builds and updated homes in Dublin and Powell where black window frames are already on the house. Pure White suits traditional interiors but is less common on a door with this much frame line. Anodized Silver gives a true aluminum look, understated and commercial-grade. Bronze reads architectural and hides Central Ohio pollen better than black does. Champagne warms up a modern facade without going beige, and Teak Wood is the finish to choose when you want the look of timber without the maintenance, on homes from Bexley to Granville where a wood aesthetic fits the street.

Glass is a performance decision. Clear is the budget option, the least expensive up front, the least efficient over time. Low-E is what we recommend for every Columbus install: it blocks summer heat gain and winter heat loss, and it is a no-brainer for a door this size. Tempered is required by code in most door applications. Laminated adds sound control and impact resistance. Gray Tint and Black Tint reduce glare on south-facing exposures and give the glass a sophisticated smoked look. Many customers pair a tinted exterior-facing lite with a retractable screen for bug season.

Installation by TruePane Windows & Doors in Columbus

A bifold door lives or dies by its installation. The panels can be perfect from the factory, and a rushed installer can hang them in an opening that is an eighth-inch out of square, and every panel binds at the same spot for the rest of its life. Manufacturer warranties do not cover that. ViewLux warranty coverage presumes installation by a qualified partner working to spec. That is what we do.

Our process starts with a pre-install inspection of the rough opening. We check header deflection, sill slope, and the wall plane. Then the frame goes in level, plumb, and square, shimmed and anchored correctly before any foam touches the perimeter. After the frame is set, we apply AAMA 812 low-expansion foam sealant around all four sides, which seals without pushing the frame out of plane. Once panels are hung, we adjust every roller carriage until each panel glides without dragging, and the meeting stiles align within tolerance. A final water test with a controlled spray at the sill and head confirms the seal before interior trim and exterior cladding go on. The crew cleans the glass, removes packaging, and walks the customer through operation before leaving.

Columbus conditions factor in throughout. Frost depth and building code requirements vary slightly between the city limits and surrounding municipalities like Westerville or Hilliard, and we pull permits where required and schedule inspections to pass. A 20-foot opening needs a header engineered for the span, and no stock door package accounts for that. Our measurement team verifies the structural opening before the order goes to ViewLux, so what arrives fits what exists.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door? Expect four to six weeks from order to delivery in Columbus, OH, depending on glass type and finish. Custom sizes and laminated glass can add a week or two. We recommend measuring early in your remodel timeline so the door arrives when the rough opening is ready. Call (888) 635-0804 and we will give you a current lead time for your exact configuration.

Does the VLX 100 qualify for energy tax credits? Low-E glass in the VLX 100 typically meets the efficiency threshold for federal energy tax credits, provided the product is installed in a qualifying primary residence. Eligibility depends on the year, the specific glass package, and your tax situation. Ask us for the NFRC label data at quote time, and share it with your tax professional. Call (888) 635-0804 to talk glass packages.

What warranty comes with the Bifold / Folding Door? The ViewLux manufacturer warranty covers the frame, hardware, and glass against manufacturing defects, and our workmanship warranty covers the installation labor. The key detail: the manufacturer warranty is only valid if the door is installed by an authorized partner to AAMA standards, which is exactly why you want a TruePane Windows & Doors install rather than a handyman. Call (888) 635-0804 and we will walk through the warranty terms in plain English.

Can I customize the size of the VLX 100? Yes, within limits. The system spans up to 20 feet wide, and panel widths adjust to fit your exact rough opening. We order every door made to measure, not cut from stock sizes. That means the opening gets sized in fractions of an inch, and the door is built for that exact dimension. We will measure and confirm before anything is ordered. Call (888) 635-0804 to schedule a free measurement.

How do I maintain an aluminum bifold frame in Columbus? Wipe the track clean every month or two, especially in spring when pollen and tree debris accumulate in the sill. Check the rollers yearly for smooth movement, and lubricate the track with a silicone spray, nothing petroleum-based. The aluminum frame itself just needs soap and water. No painting, no sealing, no warping. If a panel ever drags, call us and we will adjust the carriage. Most Columbus homes see no significant maintenance beyond cleaning for a decade or more.

Get a Quote - VLX 100 Bifold / Folding Door in Columbus

Pricing for a VLX 100 depends on width, panel count, glass, and finish, but every quote we provide is a fixed, line-item price. No vague allowances, no change orders halfway through. We measure, we quote, and we install to spec. Call (888) 635-0804 today to schedule a free on-site measurement in Columbus, OH, and we will show you exactly what your wall-to-wall opening will cost, down to the dollar.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Columbus, OH.
