AfterVLX 138 Panoramic Sliding Door in Columbus, OH | TruePane Windows & Doors
The VLX 138 Panoramic Sliding Door is a luxury large-span sliding glass system built for homeowners in Columbus who want an entire wall of glass that opens without effort. We’re talking about door panels up to 36 feet wide, gliding on stainless steel bearings so smooth you can move them with two fingers, even when the panel weighs several hundred pounds. TruePane Windows & Doors installs this ViewLux-manufactured system throughout Columbus, OH, and we’re the authorized partner you want on the job because these doors only perform as designed when the installation is flawless. A door this size has zero tolerance for a frame that’s out of square, a sill that’s off level, or perimeter sealing that wasn’t done to AAMA standards. Call us at (888) 635-0804 to talk about your project.
Product Overview - VLX 138 Panoramic Sliding Door

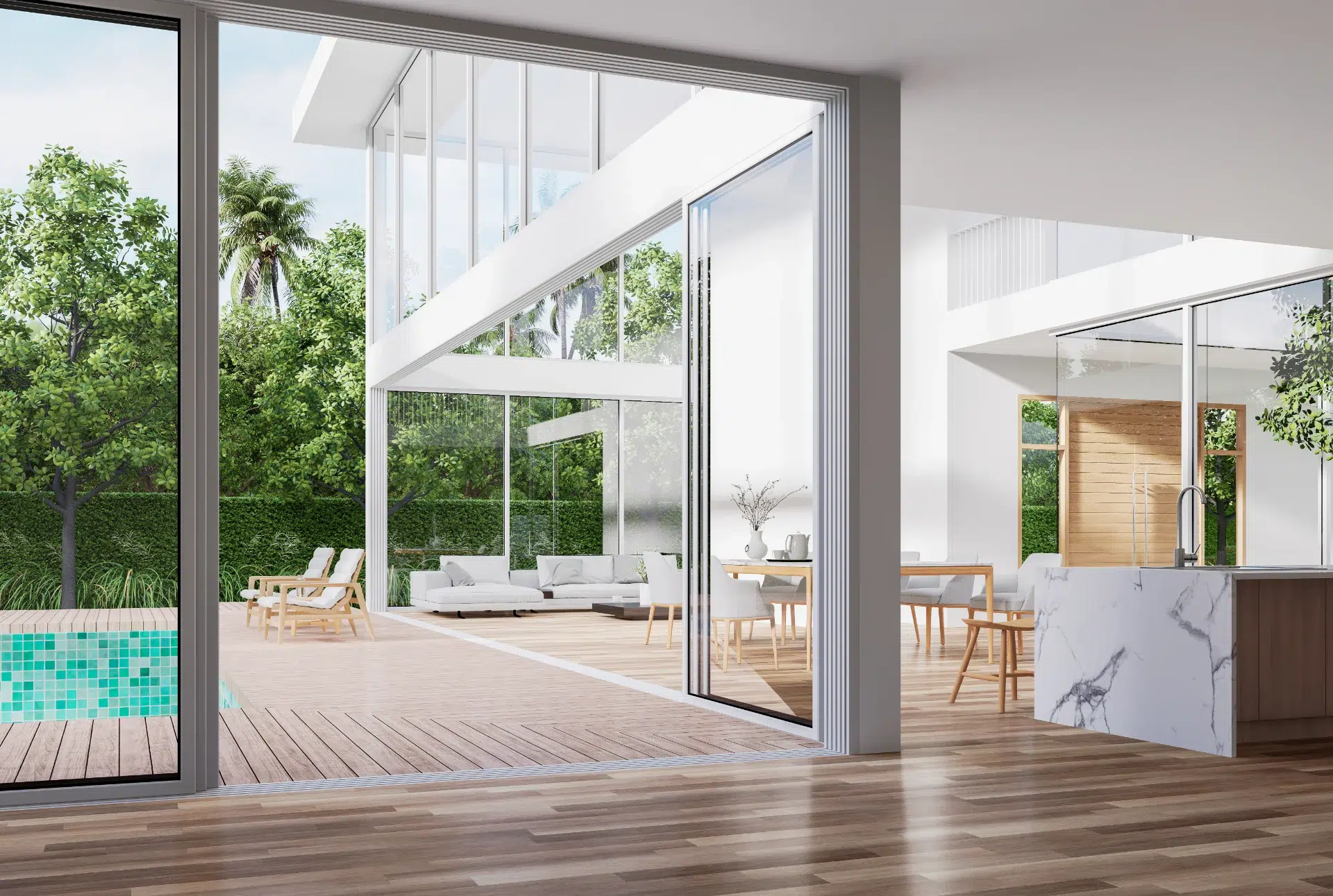

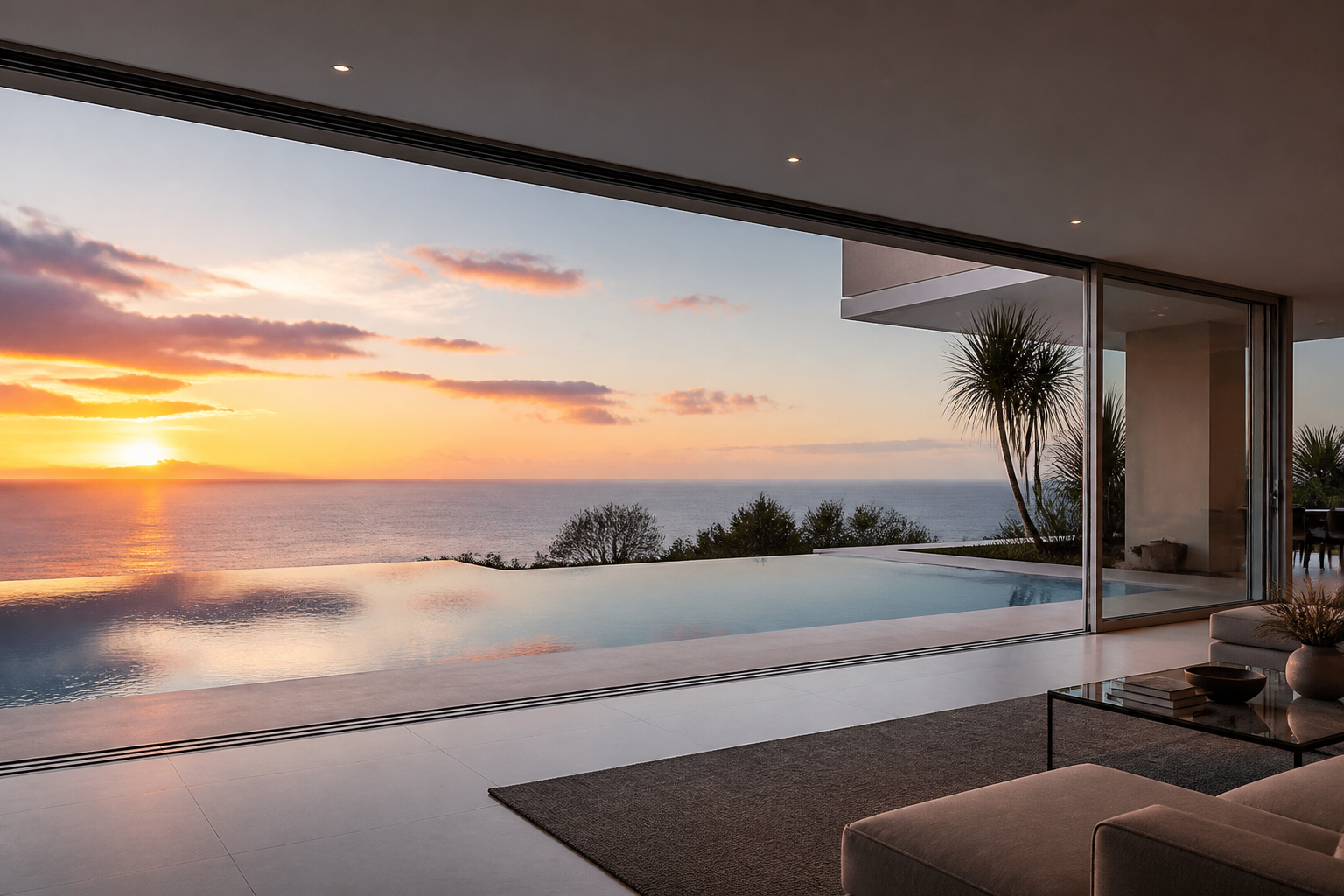

The VLX 138 exists for one reason: to erase the boundary between your living room and your backyard, your kitchen and your patio, your Columbus home and the view outside it. This is not a standard patio slider. It’s a panoramic wall system where individual panels can stretch to dramatic widths, and where the frame itself gets out of the way. The name “138” refers to the thermal break depth built into the aluminum profiles, which is substantial enough to support serious spans without sacrificing energy performance.
Architecturally, this door fits two types of Columbus projects beautifully. The first is the modern or contemporary new build, where homeowners want clean sightlines, minimal visible frame, and that gallery-like glass wall effect. The second is the high-end renovation where an old French door or tired sliding door gets replaced with something that changes how the entire room feels. We’ve installed these in German Village renovations where the contrast between historic brick and a sleek aluminum door is stunning, and in new construction in Upper Arlington and New Albany where the door is the centerpiece of the great room.
What makes the VLX 138 durable is the engineering behind the aluminum. The 0.138-inch wall thickness in the frame means this isn’t a flimsy extrusion that flexes under load. The stainless bearing hardware means the glide doesn’t degrade after a few years of Columbus freeze-thaw cycles. And the multi-track configuration means you can stack panels to one side and genuinely open up an entire wall. Buyers choose this series when they want the view to be uninterrupted by thick mullions or bulky frames, and when they want a door that feels luxury-grade every time they slide it.
Technical Specifications
| Specification | Detail |
|---|---|
| Frame wall thickness | 0.138 inches |
| Profile width | 1.535 inches |
| Maximum span | Up to 36 feet wide |
| Track configurations | 2-Track, 3-Track, 4-Track |
| Glass types | Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint |
| Frame finishes | Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood |
| Screen options | Retractable Screen, Sliding Screen |

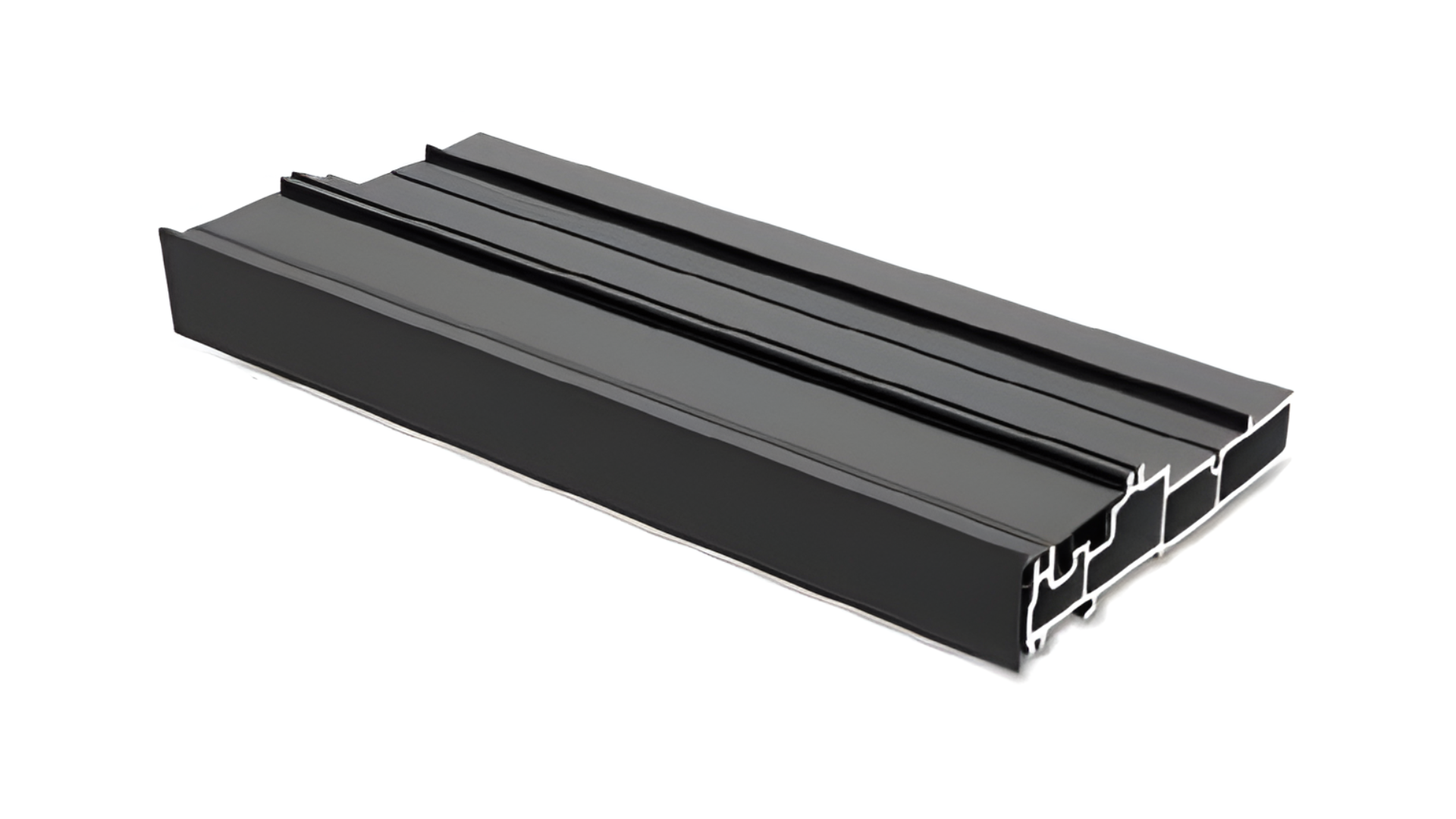

| Sill options | Flush Sill, Low-Profile Sill, Recessed Sill |
All perimeter joints are sealed with AAMA 812-compliant low-expansion foam, and the entire installation follows AAMA 2400/2410 standards for window and door installation. Thermal break technology is built into every profile, so the aluminum frame won’t conduct Columbus winter cold into your home the way older aluminum doors did. NFRC-rated energy performance data is available on request for your specific configuration.
Performance Features
Thermal Efficiency

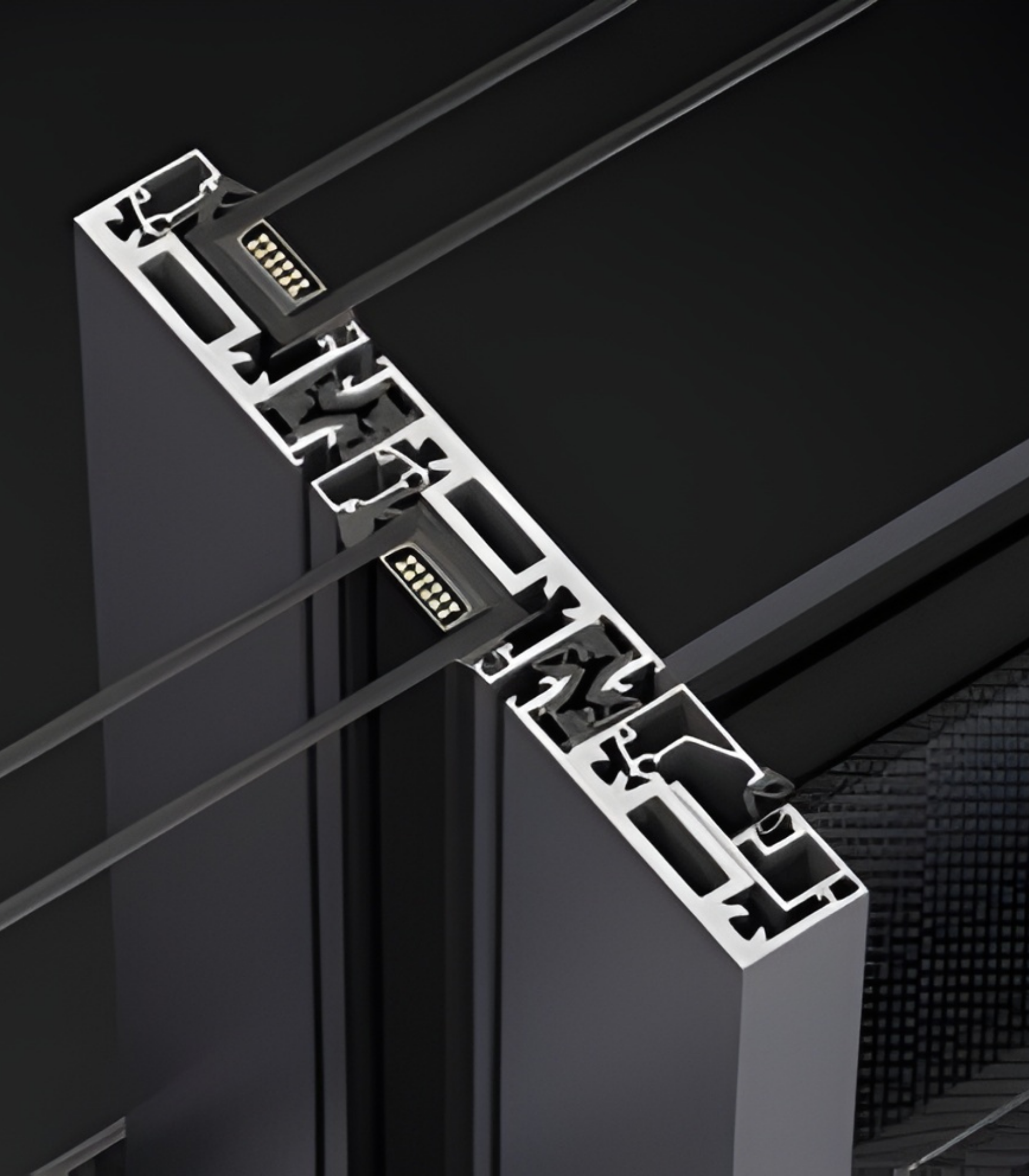

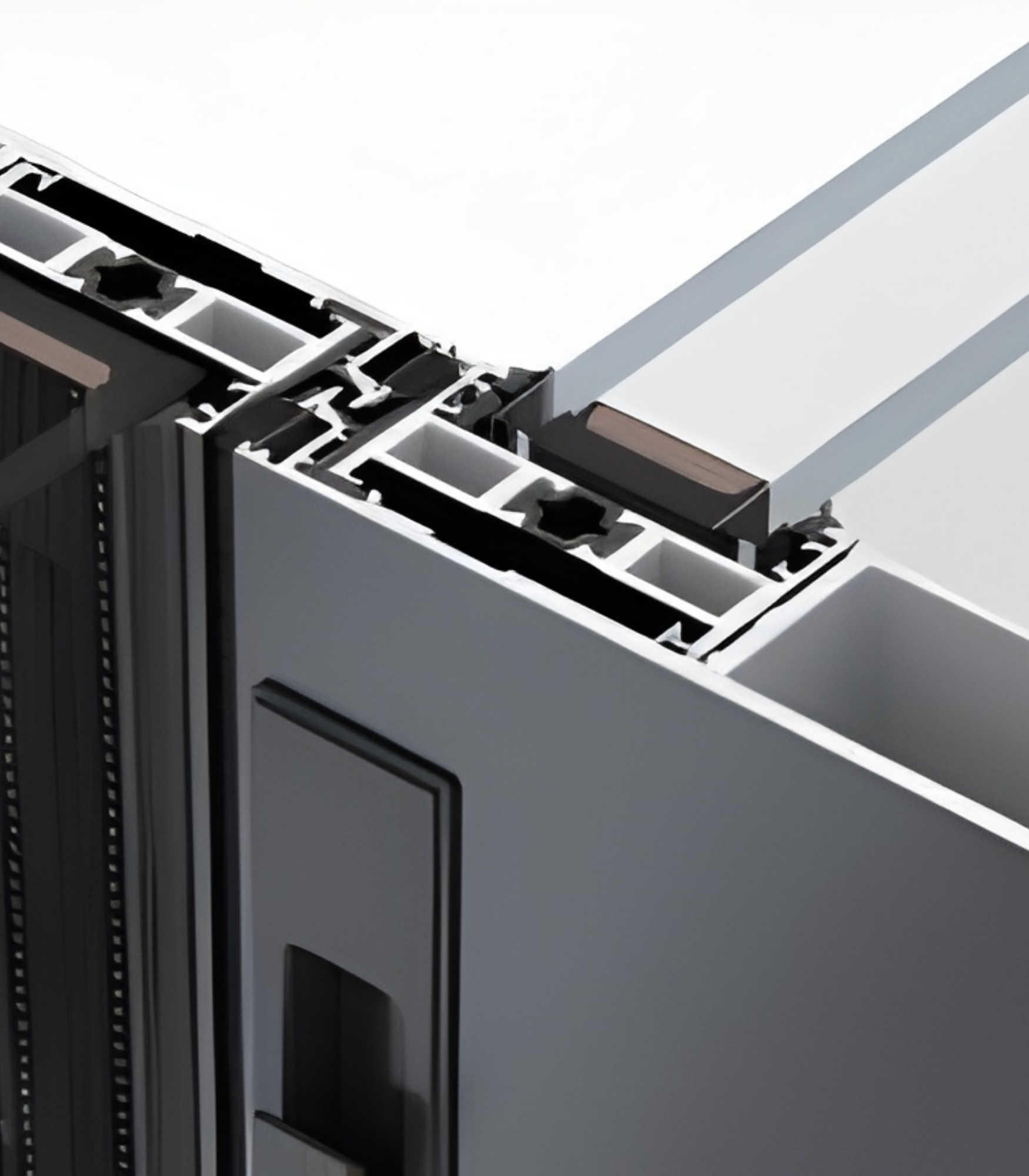

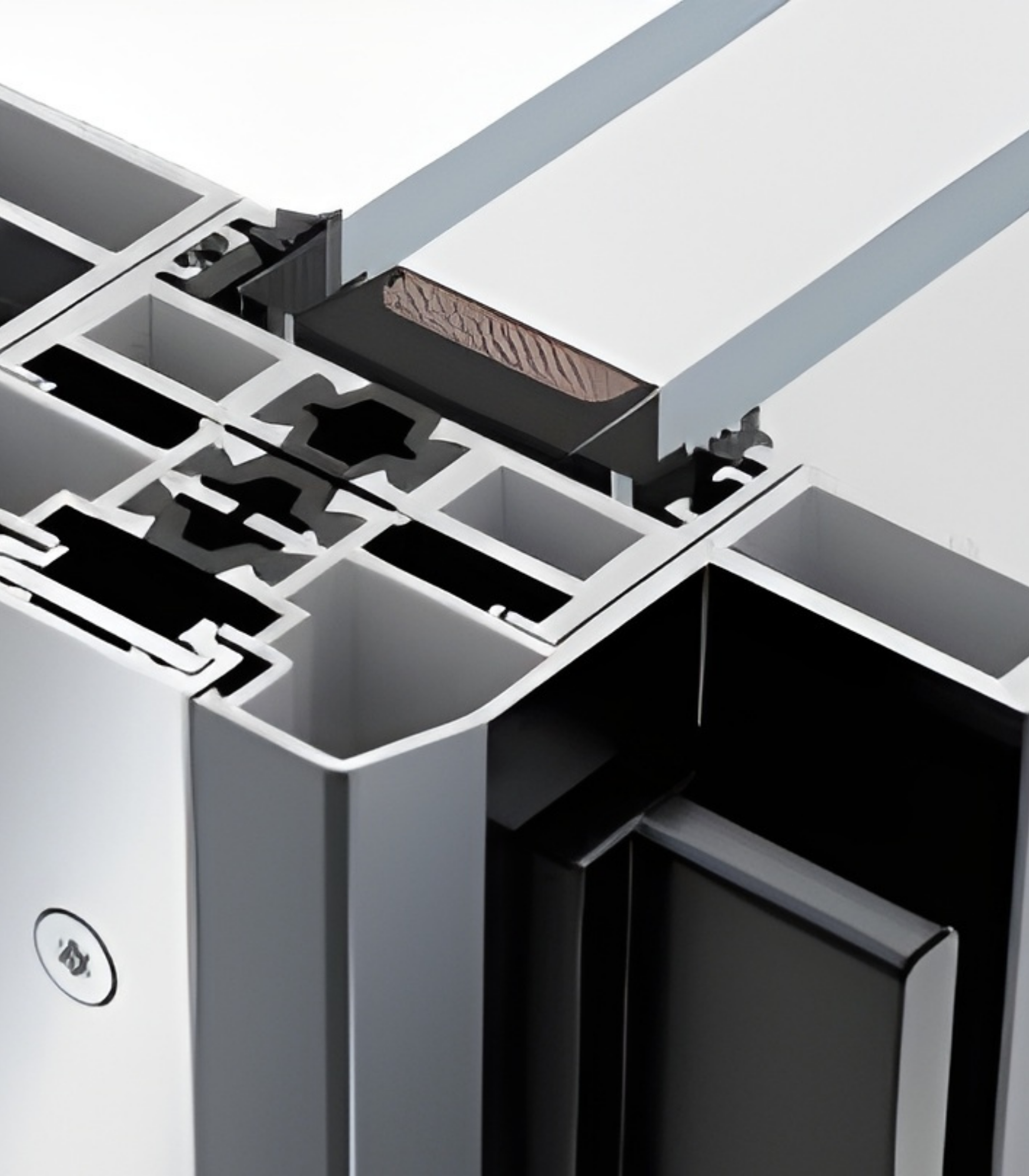

The thermal break in the VLX 138 separates the interior and exterior aluminum faces, interrupting the heat path that makes standard aluminum doors so cold in Ohio winters. NFRC-rated performance means you can compare real numbers against other products. For a Columbus home, this means no frost forming on the interior frame edge in January.
Acoustic Performance
If you live near High Street, a busy Columbus arterial, or within earshot of Ohio State game-day crowds, sound control matters. The VLX 138’s multi-chamber profiles and quality glazing options reduce exterior noise transfer significantly. Laminated glass in this system is the single biggest upgrade for acoustic damping, and it’s available in both standard and impact-resistant versions.
Airtightness & Weather Seal
The door’s multi-point locking and interlocking panel design pull the panels tight against the weatherstripping when closed. Combined with the AAMA 812 foam perimeter seal that TruePane applies during installation, you get an assembly that doesn’t leak conditioned air. In Columbus, where winter winds and summer humidity both fight your HVAC system, this is real money saved.
Waterproofing

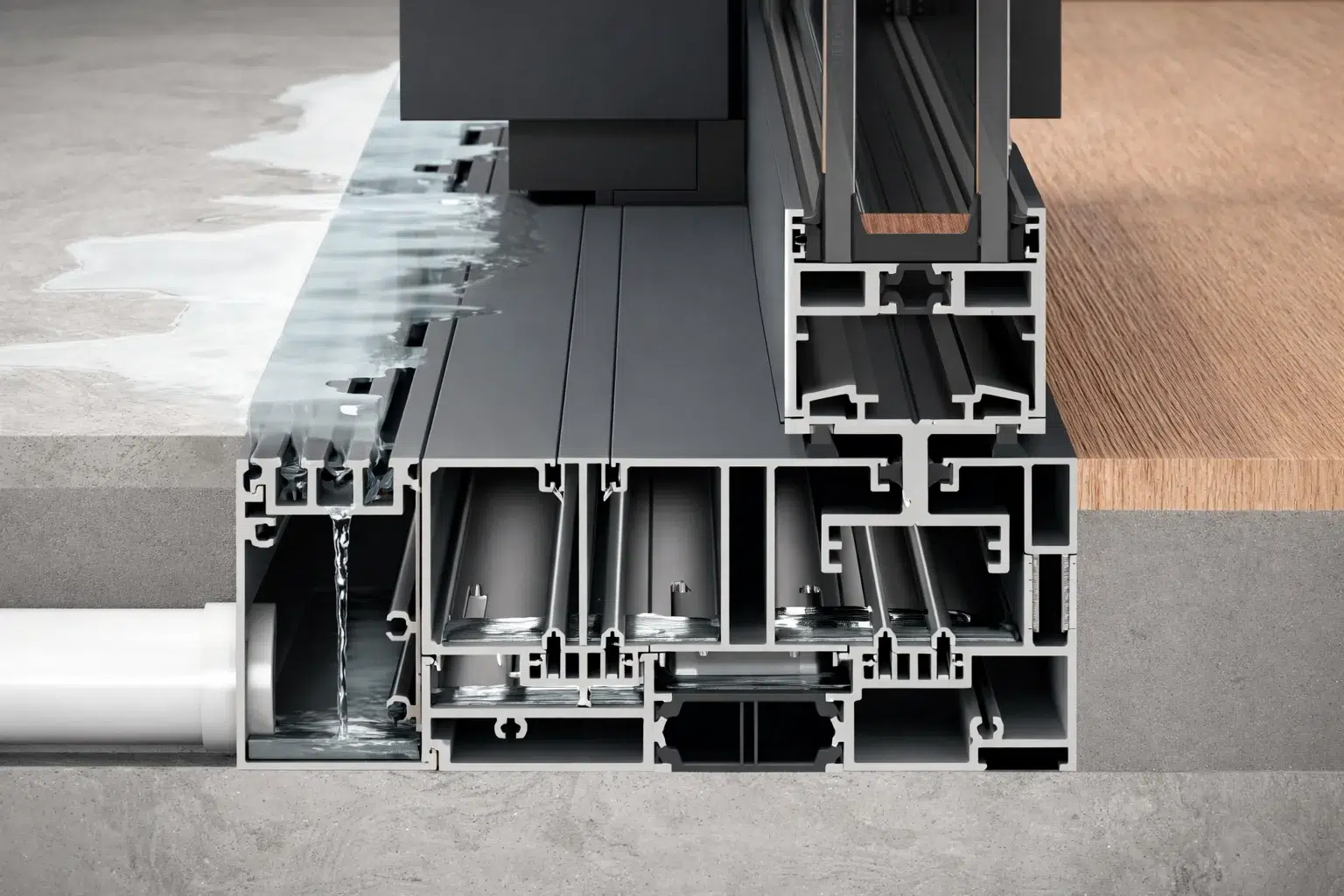

Columbus gets roughly 40 inches of rain a year plus snowmelt. The VLX 138’s sill design channels water away from the interior, and when paired with a recessed or low-profile sill installed by TruePane, the door handles driving rain without water finding its way under the frame. We water-test every installation before we call the job done.
Wind Resistance
Central Ohio sees straight-line winds and the occasional severe thunderstorm that tests every opening in your home. The VLX 138 is wind-load rated for local climate requirements, and the heavier 0.138-inch wall thickness gives the frame the rigidity it needs when a storm front pushes through Columbus. Impact-resistant laminated glass is an available upgrade for homeowners who want maximum protection.
Security & Hardware

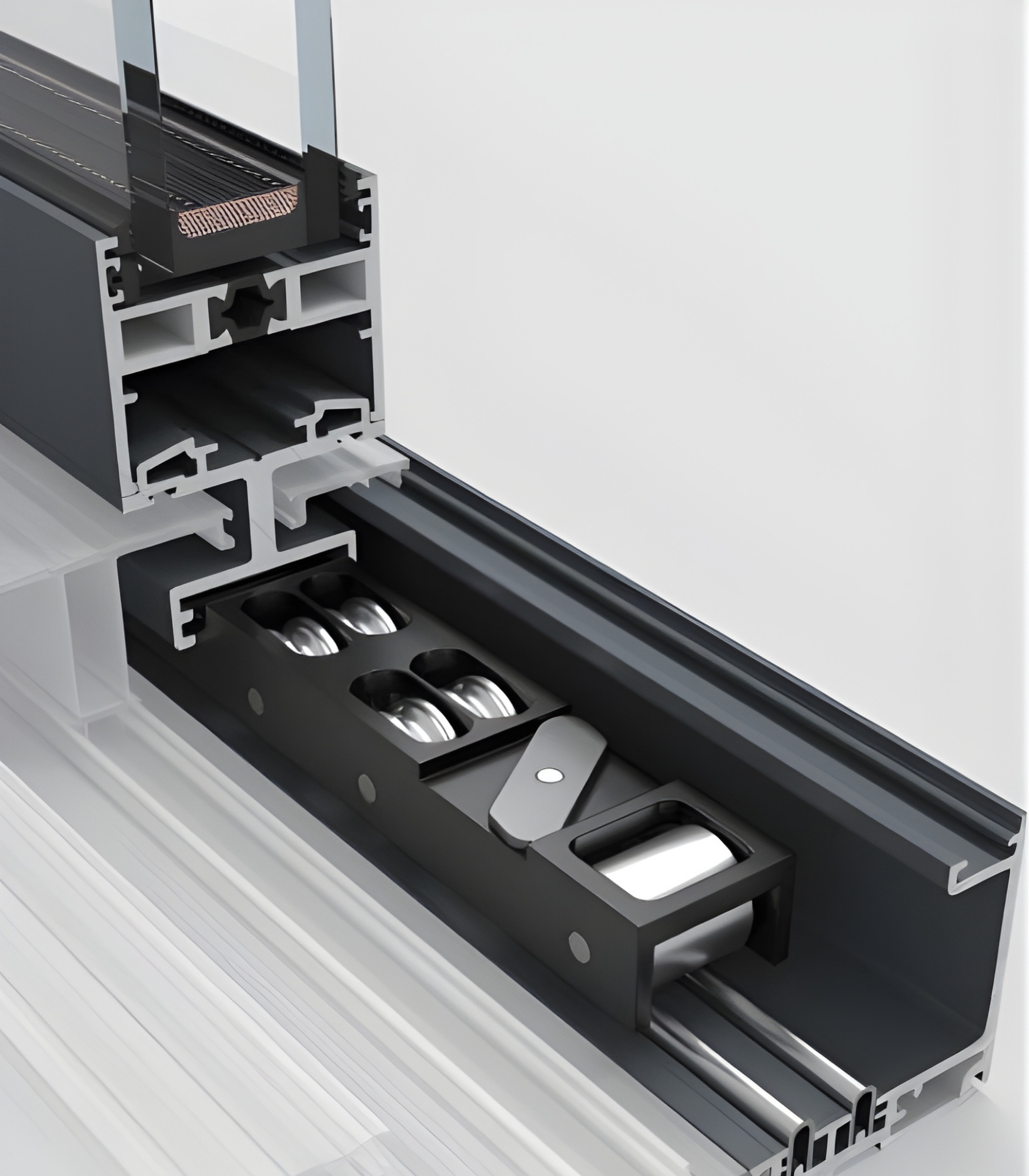

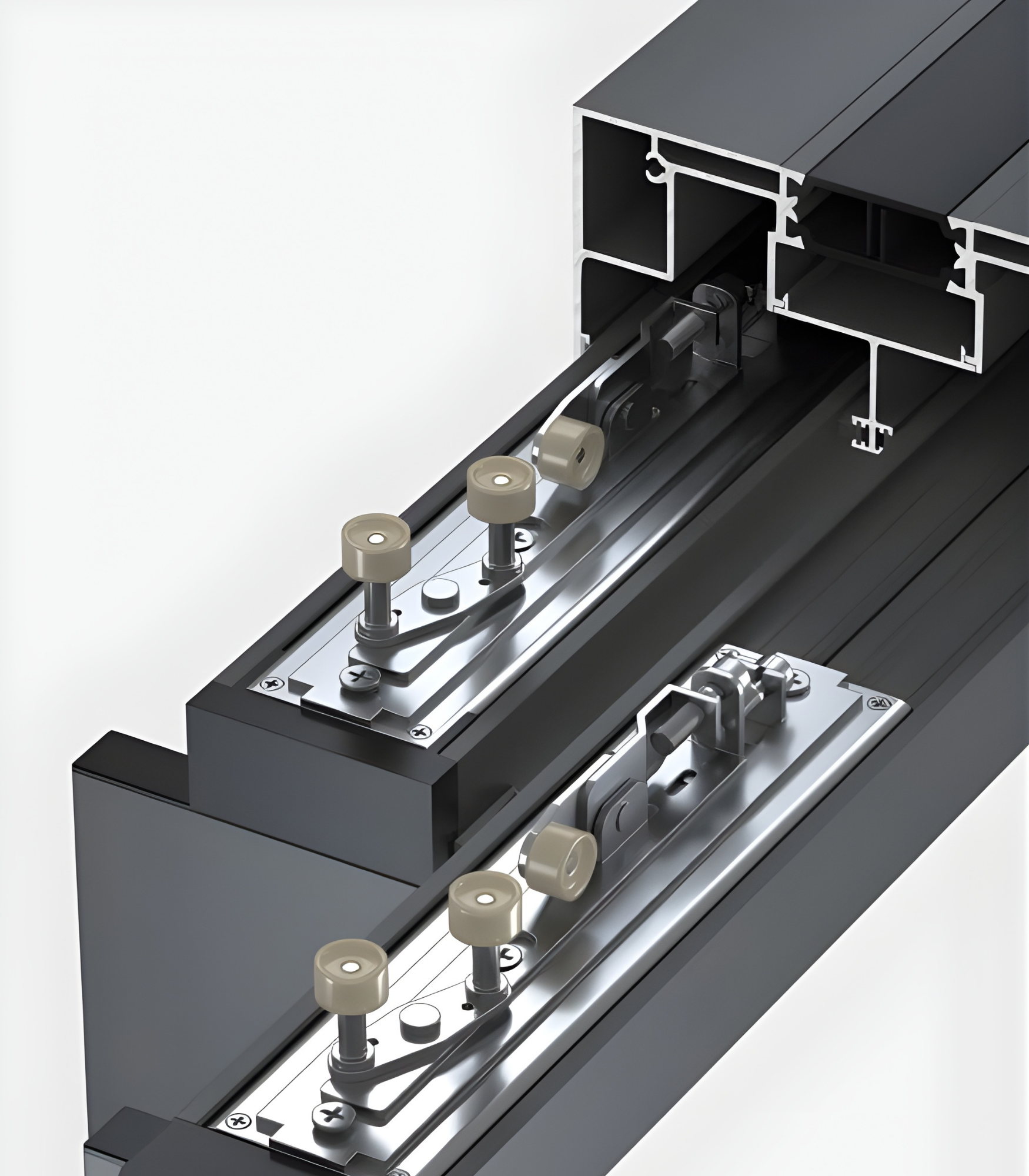

The stainless steel bearing system keeps panels moving freely for years, but the locking hardware is what you’ll appreciate at night. Multi-point locks secure panels at multiple positions along the track, and the overall system is significantly harder to force open than a standard sliding patio door. The hardware finish options match your chosen frame color.
Color & Glass Options
The six frame finishes cover almost every architectural direction you might go. Premium Black and Anodized Silver are the go-to choices for modern Columbus builds and renovations, the black especially popular in industrial-style lofts downtown and contemporary homes in the Short North. Pure White reads more transitional and works well in traditional homes where you want the door to feel light and bright rather than architectural. Bronze and Champagne give a warmer metallic tone that pairs beautifully with brick homes, which Columbus has in abundance, from Clintonville to Bexley. Teak Wood is a wood-grain finish on aluminum, giving you the look of timber without the maintenance, ideal for homeowners who love a natural aesthetic but don’t want to maintain a real wood door in Ohio weather.
On the glass side, Low-E is the default choice for energy performance in Columbus, reducing heat gain in summer and heat loss in winter. Clear glass maximizes visible light. Frosted and obscure glass make sense on bedrooms, bathrooms, or any space where privacy matters without blocking light. Black tint and gray tint are style-forward options that reduce glare and solar heat, particularly well-suited to Columbus homes with west-facing exposures that bake in the summer afternoon sun.
Installation by TruePane Windows & Doors in Columbus
We’ll be direct about this: an authorized ViewLux product installed by a non-specialist is a warranty claim waiting to happen. The VLX 138 is a precision-manufactured system, and Columbus homes present specific challenges: settling foundations in older neighborhoods, brick veneer that shifts, and freeze-thaw cycles that punish poorly sealed openings. TruePane Windows & Doors installs these doors every month, and our process is the difference between a door that operates perfectly for decades and one that binds, leaks, or voids its warranty on day one.
Our installation process for every Columbus project starts with a pre-install inspection of the rough opening. We check the existing header, the floor at the sill line, and the condition of the surrounding structure. If the opening isn’t right, we fix it before the door arrives. On install day, we set the frame level, plumb, and square. For a 36-foot panoramic system, there is no acceptable margin for error. We use AAMA 812-compliant low-expansion foam sealant on every perimeter joint, per AAMA 2400/2410 installation standards. Then we set the panels, adjust the rollers, verify the interlock engagement, and run a water test on the sill. We clean up everything, walk you through operation and maintenance, and provide the paperwork that keeps your manufacturer warranty intact.
Frequently Asked Questions - VLX 138 Panoramic Sliding Door
The VLX 138 is a custom-manufactured system, so lead time is typically 8 to 12 weeks from order confirmation to delivery at our Columbus shop, depending on glass selection and finish availability. We confirm the exact lead time when we quote the project. Start the conversation early if you’re building on a deadline. Call (888) 635-0804 for current timelines.
The VLX 138 with Low-E glass can qualify for federal energy-efficiency tax credits when it meets the current ENERGY STAR criteria for your climate zone, which Columbus falls into. Eligibility depends on the specific glass package and configuration. We’ll provide the NFRC documentation you need for your tax filing. Call (888) 635-0804 and we’ll spec it correctly.
The VLX 138 carries a manufacturer warranty through ViewLux that covers frame and hardware defects, with additional coverage for glass performance depending on the glass package you select. The key thing to know in Columbus: the warranty is only valid if installation follows AAMA standards by an authorized installer. TruePane Windows & Doors is an authorized ViewLux installation partner, so your warranty is protected. Call (888) 635-0804 for full warranty details.
Yes, and customization is the whole point. The VLX 138 is fabricated to your exact opening dimensions, up to the 36-foot maximum span, with your choice of track configuration, panel count, glass, finish, sill, and screen. We measure every opening in person before ordering, because with a door this precise, a tape-measure guess isn’t good enough. Call (888) 635-0804 to schedule a free on-site measurement.
Maintenance is minimal, but consistent. Wipe the track with a dry cloth or vacuum attachment every few months to remove grit that can wear the bearing surfaces. Clean the aluminum frame with mild soap and water; avoid abrasive cleaners that scratch the finish. The roller bearings are sealed and don’t need lubrication. In Columbus, check the sill drain holes after heavy leaf fall in autumn to keep water flowing out. We’ll walk you through all of this at handoff. Call (888) 635-0804 with any maintenance questions.
Get a Quote - VLX 138 Panoramic Sliding Door in Columbus
If you’ve been researching panoramic sliding doors and you live in Columbus or anywhere in central Ohio, let’s get real numbers for your project. We’ll measure your opening, spec the right glass and finish, and give you a written quote with no surprises. Call TruePane Windows & Doors at (888) 635-0804 to schedule your free on-site measurement and start the conversation.
Written by the team at TruePane Windows & Doors, serving Columbus, OH as an authorized ViewLux installation partner.
